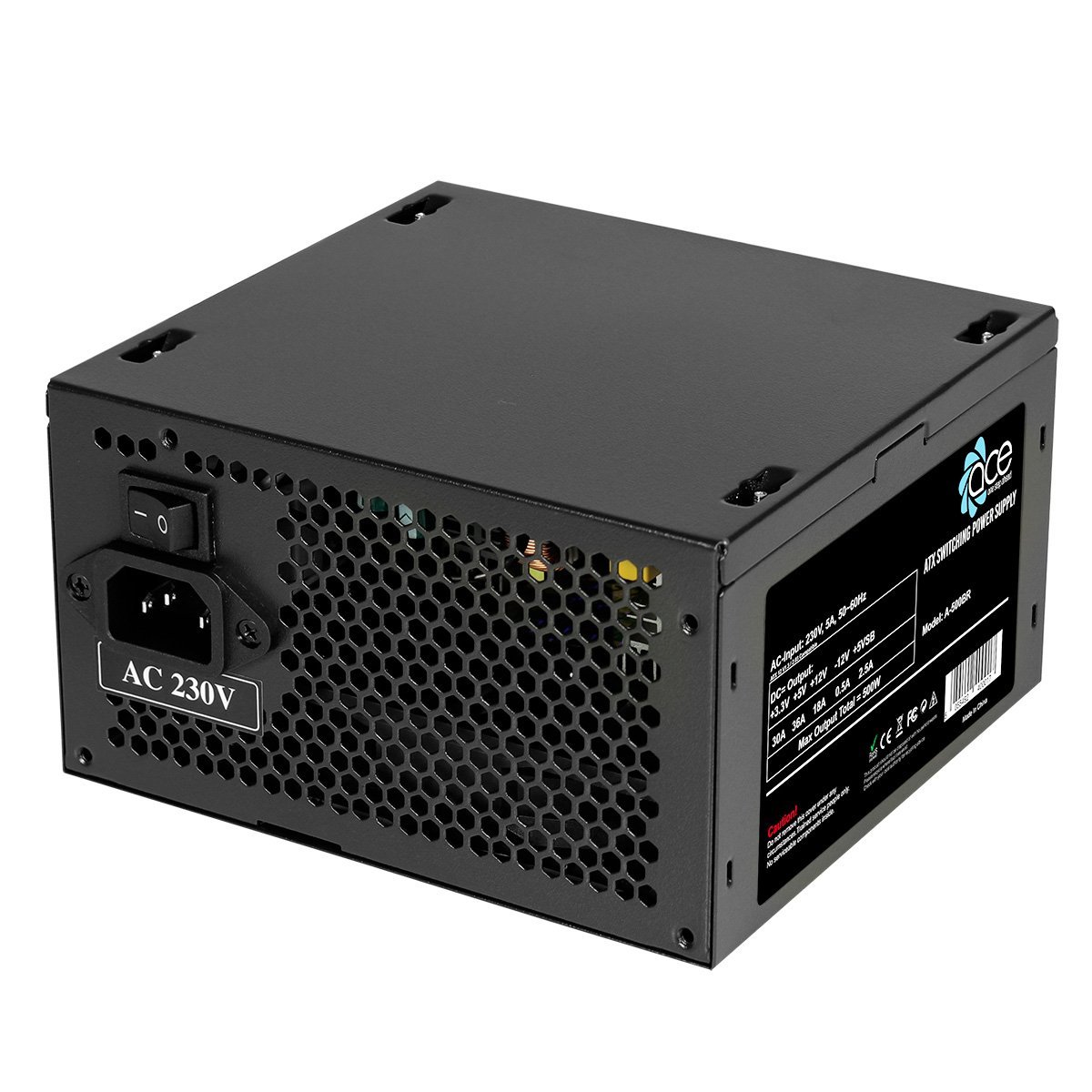

Upgrade your build with a reliable, whisper-quiet PSU designed for everyday PCs and office rigs. 🌟 Robust protections, tidy cabling, and cool, quiet operation keep your system stable and stress-free. 🧘♂️🧊
🔑 Highlights

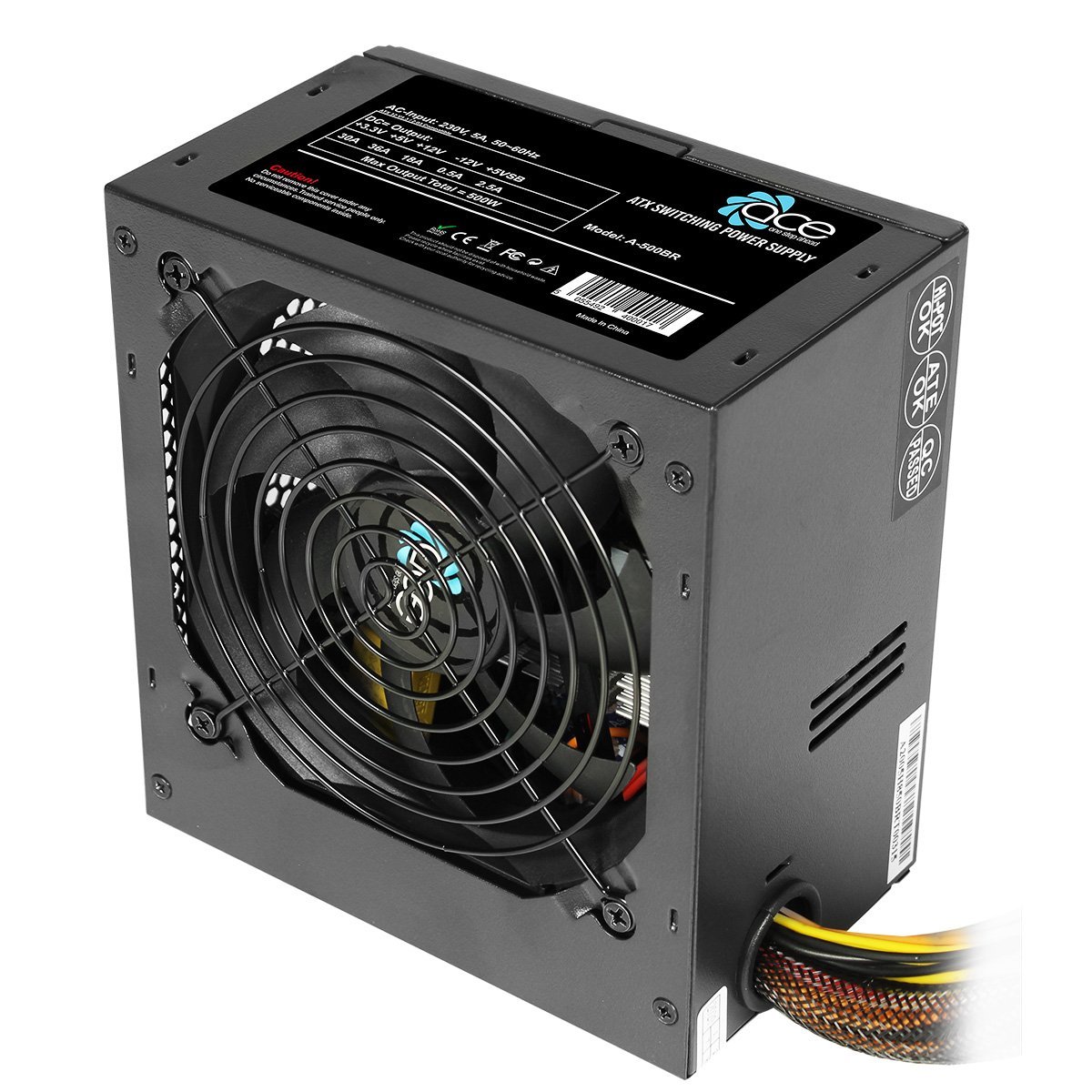

- 🌬️ Ultra-quiet 120 mm fan — < 17 dBA for peaceful builds
- 🧠 Passive PFC (PPFC) + OVP/UVP/OPP protections for safer power delivery
- 🧩 ATX 12V compliant (v1.3 / 2.03) — wide compatibility with popular CPUs & mainboards
- 🔌 Connector set: 20+4-pin ATX, 4+4-pin CPU, 3× SATA, 2× Molex, 1× Floppy
- 🔋 Total output: 500 W | Efficiency: 75% | MTBF: 100,000 h
- ✅ CE / RoHS certified
- 📦 In the box: PSU, manual, screws, cable ties
- ⚠️ Mains/kettle lead not included (Has Mains Plug: No)
⚙️ DC Output (Rails)

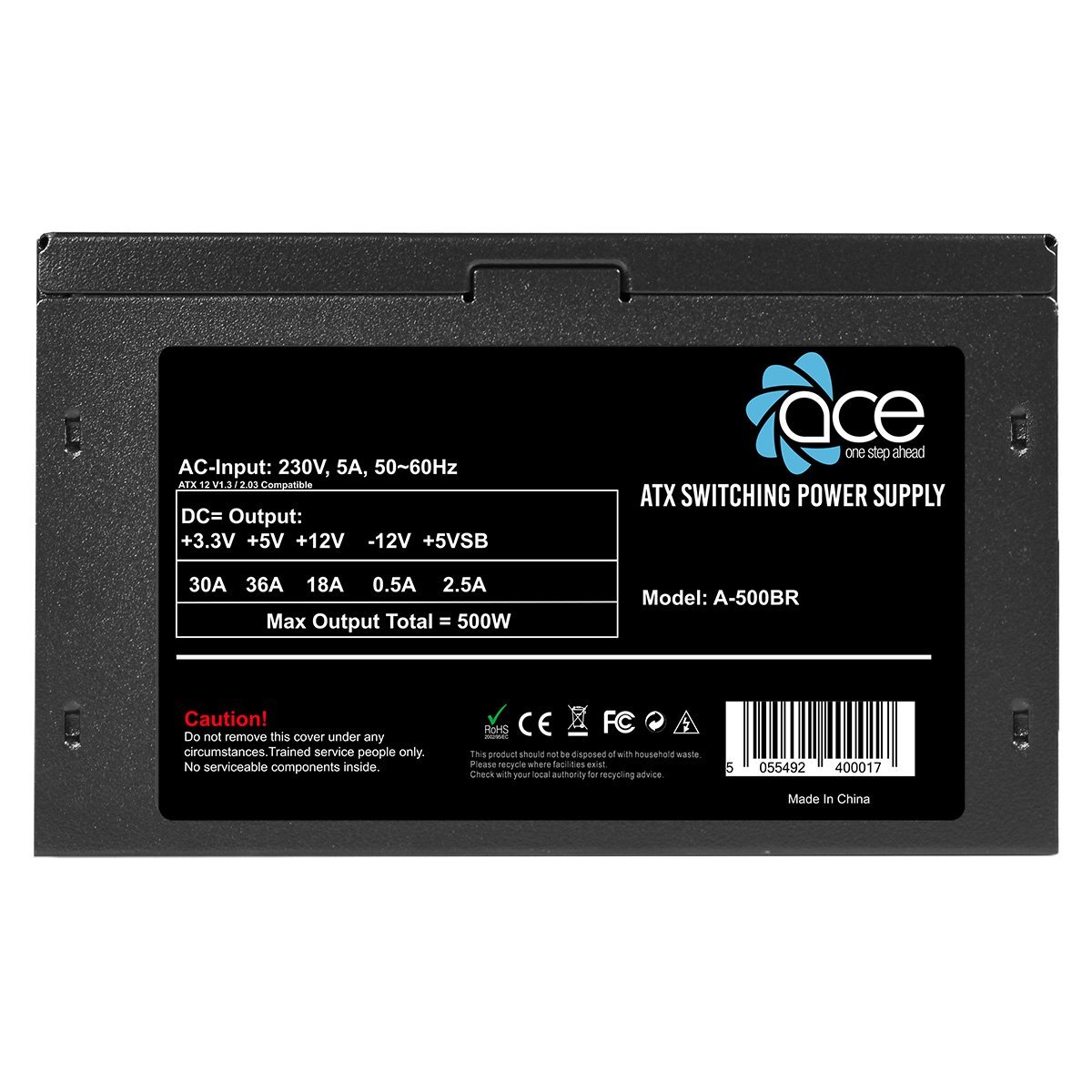

- +3.3 V: 30 A | +5 V: 36 A | +12V1: 18 A
- -12 V:5 A | +5VSB: 2.5 A
- ⏱️ Power Good: 150–450 ms | Hold-up: 1–40 ms
🔗 Connectors (Quick View)
- 🧠 20+4-pin Main: 1
- 🧠 4+4-pin 12 V CPU: 1
- 💾 SATA: 3
- 🧱 Molex: 2
- 🧮 Floppy: 1
🔍 Input & Compliance

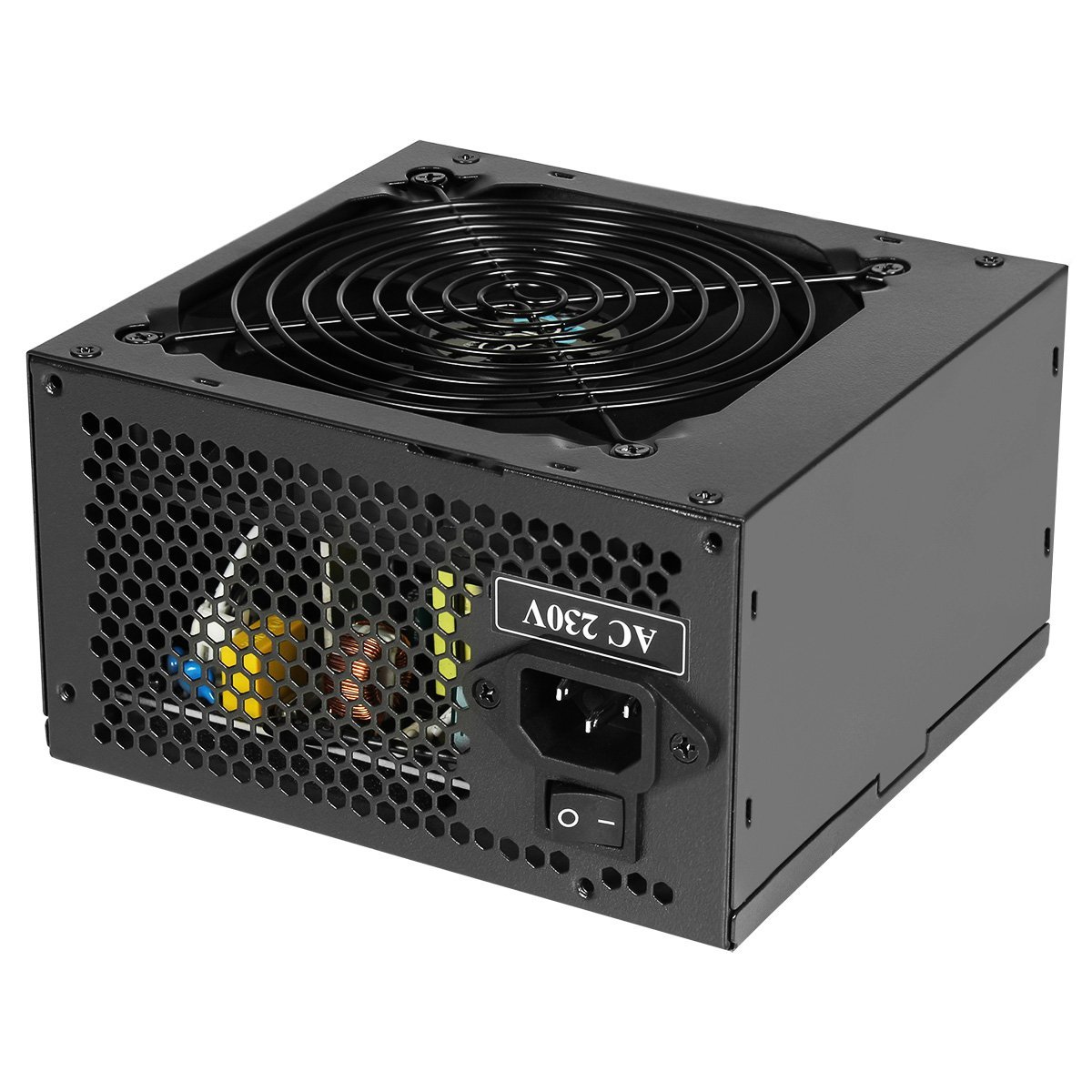

- 🔌 AC Input: 230 VAC, 5 A, 50–60 Hz
- 🧯 Protections: OVP / UVP / OPP
- 🏷️ Model: A-500BR | EAN: 5055492400017
📏 Dimensions
- Unit size: 150 × 85 × 140 mm (W × H × D)
- Net weight:992 kg | Gross: 1.174 kg
- Operating temp: up to 45 °C
Perfect for budget builds, office PCs, HTPCs, and general-purpose systems where quiet, dependable power matters. 💻🖥️🔇
